Maintenance

Cleaning

The sequence of the cleaning steps depends on which parts of the machine are dirty and needs go get cleaned.

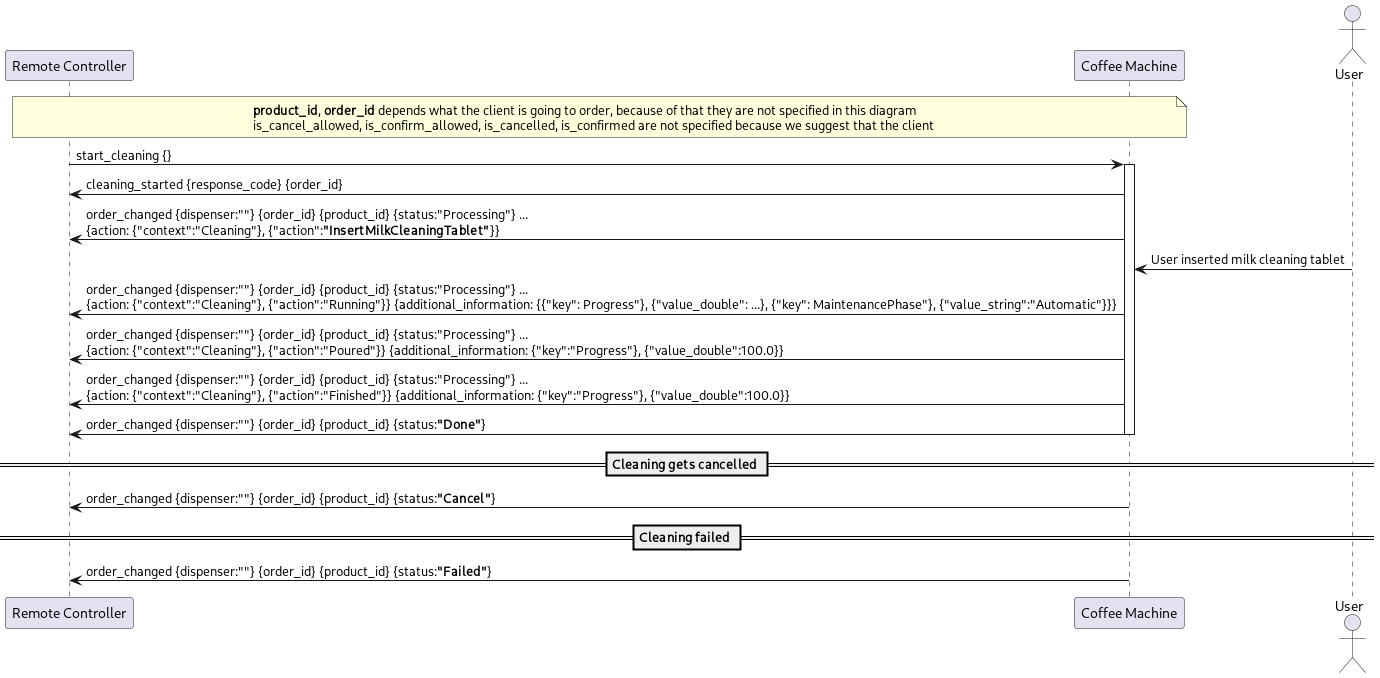

@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm actor User note over remote, cm **product_id**, **order_id** depends what the client is going to order, because of that they are not specified in this diagram is_cancel_allowed, is_confirm_allowed, is_cancelled, is_confirmed are not specified because we suggest that the client end note remote -> cm: start_cleaning {} activate cm cm -> remote: cleaning_started {response_code} {order_id} cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:"Processing"} ... \n{action: {"context":"Cleaning"}, {"action":**"InsertMilkCleaningTablet"**}} User -> cm: User inserted milk cleaning tablet cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:"Processing"} ... \n{action: {"context":"Cleaning"}, {"action":"Running"}} {additional_information: {{"key": Progress"}, {"value_double": ...}, {"key": MaintenancePhase"}, {"value_string":"Automatic"}}} cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:"Processing"} ... \n{action: {"context":"Cleaning"}, {"action":"Poured"}} {additional_information: {"key":"Progress"}, {"value_double":100.0}} cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:"Processing"} ... \n{action: {"context":"Cleaning"}, {"action":"Finished"}} {additional_information: {"key":"Progress"}, {"value_double":100.0}} cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:**"Done"**} deactivate cm == Cleaning gets cancelled == cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:**"Cancel"**} == Cleaning failed == cm -> remote : order_changed {dispenser:""} {order_id} {product_id} {status:**"Failed"**} @enduml
