Commands

StartProduct

Request to start pouring a new product

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: start_product {product_id} cm -> remote : product_started {response_code} {order_id} @enduml$

Parameter	Type	Description
product_id	string	Unique id of a product which should be poured
cancel_delay_s	double	deprecated
response_code	ResponseCode	Shows if the command what successful or not
order_id	string	To identify the order and listen to it

StartProductCategoryByName

Request to start pouring a new product category

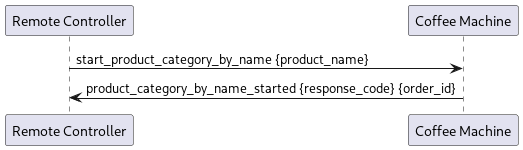

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: start_product_category_by_name {product_name} cm -> remote : product_category_by_name_started {response_code} {order_id} @enduml$

Parameter	Type	Description
product_name	string	Name of the product category
cancel_delay_s	double	deprecated
response_code	ResponseCode	Shows if the command what successful or not
order_id	string	To identify the order and listen to it

GetProductList

Request to get a list of all known products with their ids and product names.

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_product_list cm -> remote : product_started {product_list} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
product_list	map<string, string>	Returns a map of products. The key contains the product names as shown on the UI and the contains the product id needed by the ‘StartProduct’ message

GetAvailableProductIds

Request to get a list of all available product ids.

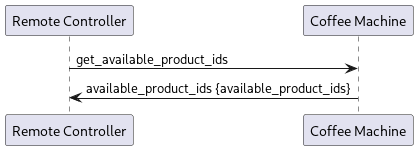

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_available_product_ids cm -> remote : available_product_ids {available_product_ids} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
available_product_ids	repeated string	Returns a list of all the available product ids

GetActiveEvents

Request to get a list of all active events.

Check ErrorEvent to see all the returned values

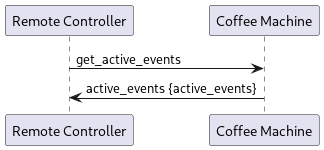

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_active_events cm -> remote : active_events {active_events} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
active_events	repeated ErrorEvent	list contains tuples of the number, title and source index of events

ForceRinse

Request to force a rinse now.

@startuml

participant "Remote Controller" as remote
participant "Coffee Machine" as cm

remote -> cm: force_rinse
cm -> remote : rinse_forced

@enduml

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not

PostponeRinse

Request to postpone the next upcoming rinse by the specified number of milliseconds.

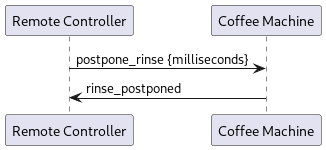

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: postpone_rinse {milliseconds} cm -> remote : rinse_postponed @enduml$

Parameter	Type	Description
milliseconds	uint32	Number of milliseconds the next rinse is postponed. PostponeRinse command can be executed maximum three times, after that the coffee machine will perform the rinse.
response_code	ResponseCode	Shows if the command what successful or not

GetSwVersion

Request to get the current SW version.

@startuml

participant "Remote Controller" as remote
participant "Coffee Machine" as cm

remote -> cm: get_sw_version
cm -> remote : sw_version

@enduml

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
sw_version	string	software version

GetRunningOrders

Get the running orders

Check Order to see all the returned values

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_running_orders cm -> remote : running_orders {orders} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
orders	repeated Order	Information about the running orders

GetQueuedOrders

Get the queued orders

Check Order to see all the returned values

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_queued_orders cm -> remote : queued_orders {orders} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
orders	repeated Order	Information about the queued orders

GetOrder

Get the order to the requested id

Check Order to see all the returned values

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_order {order_id} cm -> remote : order_response {order} @enduml$

Parameter	Type	Description
order_id	string	To identify the order and listen to it
response_code	ResponseCode	Shows if the command what successful or not
order	Order	Information about the requested order

Confirm

Confirm order with id

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: confirm {order_id} cm -> remote : confirmed @enduml$

Parameter	Type	Description
order_id	string	To define to which order the confirm is send
response_code	ResponseCode	Shows if the command what successful or not

Cancel

Cancel order with id

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: cancel {order_id} cm -> remote : cancelled @enduml$

Parameter	Type	Description
order_id	string	To define to which order the cancel is send
response_code	ResponseCode	Shows if the command what successful or not

StartCleaning

Cancel order with id

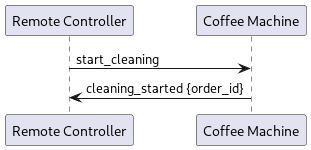

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: start_cleaning cm -> remote : cleaning_started {order_id} @enduml$

Parameter	Type	Description
response_code	ResponseCode	Shows if the command what successful or not
order_id	string	To identify the order and listen to it

GetSetting

Get the setting with the requested id. Dependent on the machine type and its configuration, a setting may not be available. In such cases, the response code SETTING_ID_NOT_AVAILABLE is returned.

List of available settings:

AmbientWaterFeature = 0,        // value range: ["true", "false"] (only BW4)
AutoOutletFeature = 1,          // value range: ["true", "false"]
BeanDetectionFeature = 2,       // value range: ["true", "false"]
CupDetectionFeature = 3,        // value range: ["true", "false"]
ExternalWaterDrainFeature = 4,  // value range: ["true", "false"]
FlavorFeature = 5,              // value range: ["true", "false"]
FlavorPipeLength = 6,           // number as string in meters     (only if flavor enabled)
FridgePipeLength = 7,           // number as string in meters     (only if milk enabled)
GroundsChute = 8,               // value range: ["true", "false"]
MilkInBagFeature = 9,           // value range: ["true", "false"] (only if milk enabled)
MilkWandFeature = 10,           // value range: ["true", "false"] (only BW4 and if milk enabled)
NsfCompliantCleaning = 11,      // value range: ["true", "false"]
PowderFeature = 12,             // value range: ["true", "false"]
PowerConfiguration = 13,        // value range: [ThreePhase_16A = "0", SinglePhase_16A = "1",
                                //               SinglePhase_13A = "2", SinglePhase_24A = "3"] (only BW4)
SecondMilkSource = 14,          // value range: ["true", "false"] (only if milk enabled)
SingleGrinderFeature = 15,      // value range: ["true", "false"]
UnderTableFridge = 16,          // value range: ["true", "false"] (only BW4 and if milk enabled)

$@startuml participant "Remote Controller" as remote participant "Coffee Machine" as cm remote -> cm: get_setting {setting_id} cm -> remote : setting_response @enduml$

Parameter	Type	Description
setting_id	string	To identify which setting is requested
response_code	ResponseCode	Shows if the command what successful or not
setting	Setting	Infos about the requested setting

UnknownMessage

The remote control service has received a message with a message id that is not currently supported.

@startuml

participant "Remote Controller" as remote
participant "Coffee Machine" as cm

remote -> cm: xxxx
cm -> remote : unknown_message

@enduml

WrongCrc

The remote control service has received a message with an invalid CRC value. No operation was executed.

@startuml

participant "Remote Controller" as remote
participant "Coffee Machine" as cm

remote -> cm: xxxx
cm -> remote : wrong_crc

@enduml

BrokenMessage

The remote control service has received a message with a valid CRC value but the contained message could not be parsed according to this protobuf description

@startuml

participant "Remote Controller" as remote
participant "Coffee Machine" as cm

remote -> cm: xxxx
cm -> remote : broken_message

@enduml

ResponseCode

Value	Description
UNKNOWN_RESPONSE_CODE	Place holder for protobuf
SUCCESS	The request succeeded
INVALID_PARAMETER	One of the given parameters is invalid
DBUS_ADAPTER_ERROR	A failure occurred in the communication between the remote API component and the application
GENERAL_ERROR	The request failed due to not further specified issues
SYSTEM_BUSY	The application is currently completing another request and can’t execute this request
UNKNOWN_PRODUCT_ID	The product id specified in a request is not known
PRODUCT_NOT_AVAILABLE	The product is known but cannot be poured at the moment
PRODUCT_ID_NOT_POURING	The product ID requested to cancel is not pouring at the moment
MAX_POSTPONE_NUM_REACHED	The maximum number of rinse postponements is reached
NO_RINSING_UPCOMING	No rinsing is upcoming and thus nothing will be postponed
SETTING_ID_NOT_AVAILABLE	The setting id is known but it is not applicable for this machine type

Deprecated Commands

CancelProduct
Use cancel instead
GetNSFCompliantCleaning
Use GetSetting instead
